Bambrella Visual Showcase

Discover the strength and elegance of Bambrella parasols through our visual showcase. From luxury hotels and vibrant restaurants to stylish rooftops and serene outdoor spaces, our products are designed to deliver lasting shade and performance in any environment. Each photo highlights the craftsmanship, durability, and timeless design that make Bambrella the trusted choice for the world’s strongest commercial parasols.

Technical Data:

Diagram	Reference	Material Frame
	1 = Total height, 2 = Frame height, 3 – post spacing	The pole, posts, ribs and finial are all made from aluminium. The hub and runner are made from marine grade nylon PA66. The feet, corner and rib brackets are all made from powder coated steel

Alize Square Specifications
Code	Size	Total height	Frame height	Post Spacing	No of ribs	Size of ribs
2.6m SQ-HA	2.6 x 2.6m 8’6″ x 8’6″	3.10m 10’2″	2.1m 6’10”	2.2m 7’3″	8	35 x 20mm 1 3/8″ x 3/4″
3.0m SQ-HA	3.0 x 3.0m 10′ x 10′	3.20m 10’6″	2.1m 6’10”	2.2m 7’3″	8	35 x 20mm 1 3/8″ x 3/4″
3.40m SQ-HA	3.4 x 3.4m 11’2″	3.40m 11’2″	2.1m 6’10”	3.0m 10′	8	35 x 20mm 1 3/8″ x 3/4″

Technical Data:

Diagram	Reference	Material Frame
	1 = Total height, 2 = Frame height	The poles, ribs, hub, runner and finial are all made using laminated bamboo, All metal fittings are 304 stainless steel. The feet, corner and rib brackets are made from powder coated steel

Alize Square Specifications
Diagram	Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
	3.0m SQ-A	3.0m 9’10”	3.20m 10’6″	2.1m 6’10”	0.6m 1’11”	93 x 93mm 3 5/8″ x 3 5/8″	8	35 x 20mm 1 3/8″ x 3/4″

Alize Rectangle Specifications
Diagram	Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
	2.5X3.5m REC-SW	3.0 x 4.0m 9’10” x 13’3″	3.40m 11’2″	2.1m 6’10”	0.68m 2’3″	93 x 93mm 3 5/8″ x 3 5/8″	8	35 x 20mm 1 3/8″ x 3/4″

Technical Data:

Maestro Cantilever Square Sizes
Diagram	Code	Size
	2.6m Square 2.6m SQ-SW-SA	2.6m 9′
	3.0m Square 3.0m SQ-SW-H	3.0m 10′
	3.4m Square 3.4m SQ-SW-H	3.4m 11’5″

Maestro Cantilever Round Sizes
Diagram	Code	Size
	3.0m Round 3.om R-SW-SA	3.0m 10′
	3.5m Round 3.5m R-SW-H	3.5m 12′

Technical Data:

Diagram	Reference	Material Frame	Opening
	1 = Total height, 2 = Open height, 3 = Closed height	The posts and ribs, hub and runner – 316 Marine grade mirror polished finish stainless steel	A geared winch system ensuring easy opening and closing of the parasol

Hurricane Extreme Round Parasol Specifications
Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
4.5m Round 4.5m HE-R	4.5m 15′	3.0m 10′	2.2m 7’3″	0.75m 2’6″	80mm dia 3mm thick	4	38mm dia 3mm thick
5.1m Round 5.1m HE-R	5.1m 17′	3.5m 11’5″	2.2m 7’3″	1.05m 3’6″	80mm dia 3mm thick	4	38mm dia 3mm thick
5.8m Round 5.8m HE-R	5.8m 19.2′	4.0m 13’2″	2.2m 7’3″	0.65m 2’2″	80mm dia 3mm thick	4	38mm dia 3mm thick

Hurricane Extreme Rectangle Parasol Specifications
Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
2.5 x 3.5m Rectangle 2.5 x 3.5m HE-REC	2.5 x 3.5m 8’5″ x 12′	3.0m 10′	2.2m 7’3″	0.75m 2’6″	80mm dia 3mm thick	4	38mm dia 3mm thick
4.2 x 2.9m Rectangle 4.2 x 2.9m HE-REC	4.2 x 2.9m 14′ x 10′	3.5m 11’5″	2.2m 7’3″	1.05m 3’6″	80mm dia 3mm thick	4	38mm dia 3mm thick
4.7 x 3.3m Rectangle 4.7 x 3.3m HE-REC	4.7 x 3.3m 15’5″ x 11′	4.0m 13’2″	2.2m 7’3″	0.65m 2’2″	80mm dia 3mm thick	4	38mm dia 3mm thick

Hurricane Extreme Square Parasol Specifications
Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
3.0m Square 3.0m HE-SQ	3.0 x 3.0m 10′ x 10′	3.0m 10′	2.2m 7’3″	0.75m 2’6″	80mm dia 3mm thick	4	38mm dia 3mm thick
3.5m Square 3.5m HE-SQ	3.5 x 3.5m 11.5′ x 11.5′	3.5m 11’5″	2.2m 7’3″	1.05m 3’5″	80mm dia 3mm thick	4	38mm dia 3mm thick
4.0m Square 4.0m HE-SQ	4.0 x 4.0m 13.5′ x 13.5′	4.0m 13’2″	2.2m 7’3″	0.65m 2’2″	80mm dia 3mm thick	4	38mm dia 3mm thick

Technical Data:

Diagram	Reference	Material Frame	Opening
	1 = Total height, 2 = Open height, 3 = Closed height	The posts and ribs are made from bamboo, hub, runner – marine grade nylon PA66	A winch system is used using 304 stainless steel wire

Sirocco Side Wind Round Specifications
Diagram	Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
	3.0m Round 3.om R-SW-S	3.0m 10′	2.8m 9’2″	2.1m 6’10”	1.20m 4’0″	8	28 x 20mm 1 1/8″ x 3/4″	4 x 30kg 4 x 60lb

Sirocco Side Wind Square Specifications
Diagram	Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
	2.6m Square 2.6m SQ-SW-S	2.6m 9′	3.0m 9’11”	2.1m 6’10”	0.86m 1’11”	8	28 x 20mm 1 1/8″ x 3/4″	4 x 30kg 4 x 60lb

Technical Data:

Diagram	Reference	Material Frame	Opening
	1 = Total height, 2 = Open height, 3 = Closed height	The pole and ribs are all made using laminated bamboo. The hub, runner and finial are all made from marine grade nylon PA66. All metal fittings are 304 stainless steel.	A double pulley and rope system is used for easy, light opening.

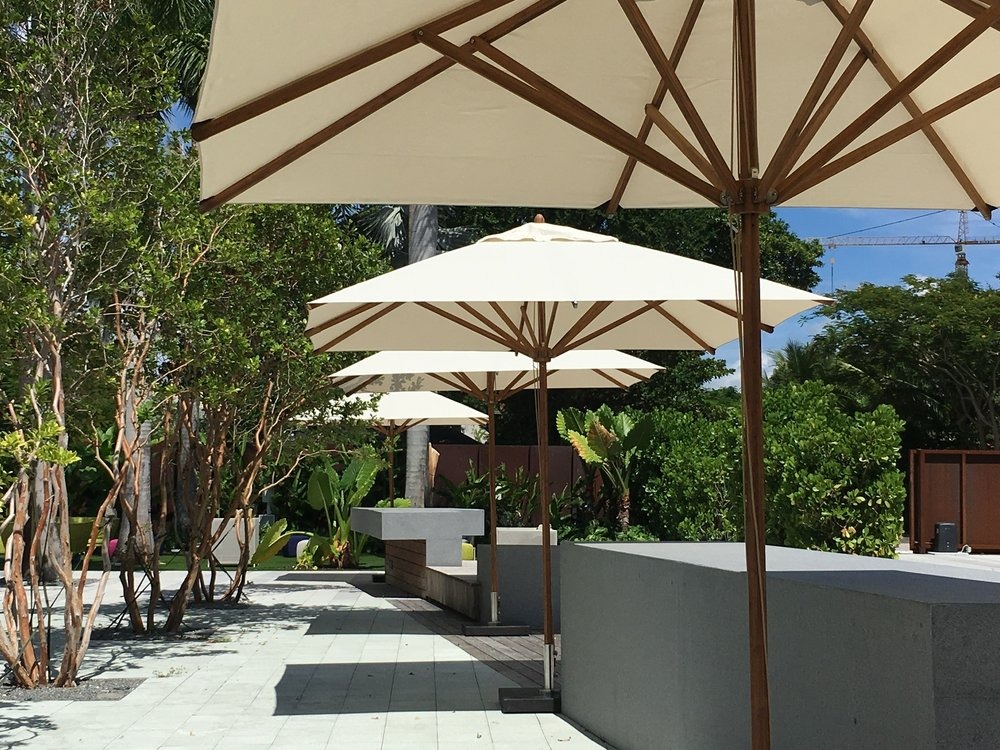

Sirocco Bamboo Wooden Specifications
Code	Size	Total height	Open height	Closed height	Pole size	No. of Ribs	Rib Size
2.0m Round 2.0m R-S	2.0m 7′	2.35m 7’8″	1.9m 6’3″	1.2m 3’11”	38mm 1.5″	6	25 x 20mm 1″ x 3/4″
2.5m Round 3.0m R-S	2.5m 8.5′	2.4m 7’10”	1.9m 6’3″	1.2m 3’9″	38mm 1.5″	6	25 x 20mm 1″ x 3/4″
3.0m Round 3.0m R-S	3.0m 10′	2.54m 8’4″	1.9m 6’3″	1.0m 3’3″	38mm 1.5″	6	25 x 20mm 1″ x 3/4″
2.0m SQ-S	2.0m x 2.0m 7′ x 7′	2.53m 8’4″	2.0m 6’6″	1.0m 3’3″	38mm 1.5″	4	25 x 20mm 1″ x 3/4″

Technical Data:

Diagram	Reference	Material Frame	Opening
	1 = Total height, 2 = Open height, 3 = Closed height	The pole, ribs, hub, runner and finial are all made using laminated bamboo. All metal fittings are 304 stainless steel.	A double pulley and rope system is used for easy, light opening.

Levante Telescopic Square Specifications
Diagram	Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
	4.0m Square 4.0m SQ-T-L	4.0 x 4.0m 13.5′ x 13.5′	4.0m 13’2″	2.3m 7’7″	0.80m 2’7″	58mm 2.25″	8	35 x 20mm 1 3/8″ x 3/4″

Technical Data:

Diagram	Reference	Material Frame	Opening
	1 = Total height, 2 = Open height, 3 = Closed height	The pole, ribs, hub, runner and finial are all made using laminated bamboo. All metal fittings are 304 stainless steel.	A winch system is using 304 stainless steel wire base frame and post connectors e-coated then powder coated steel.

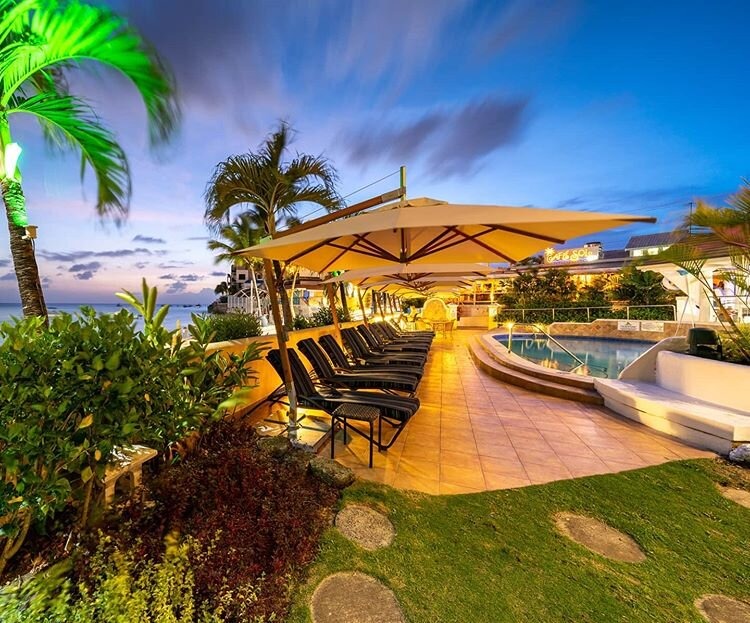

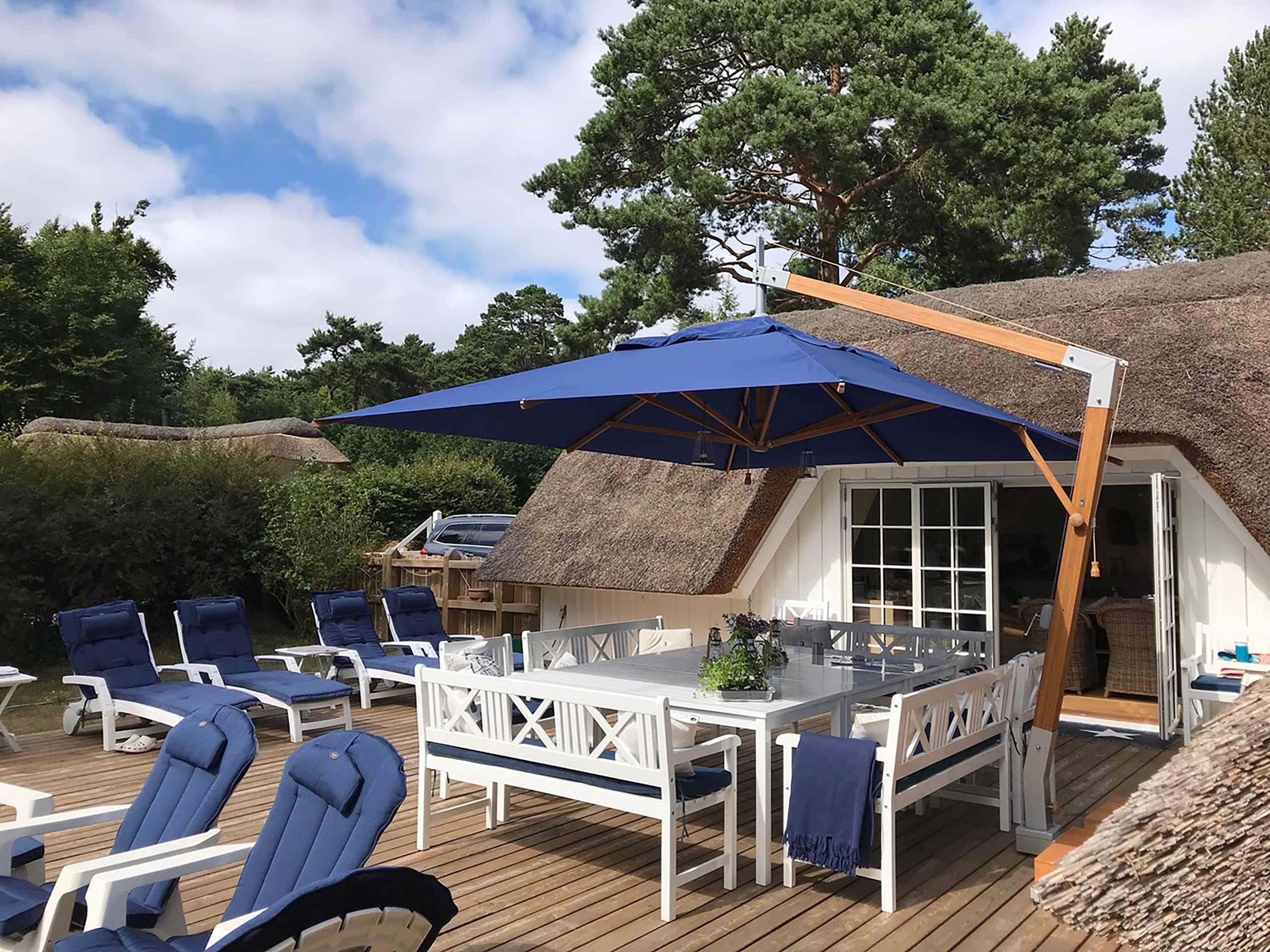

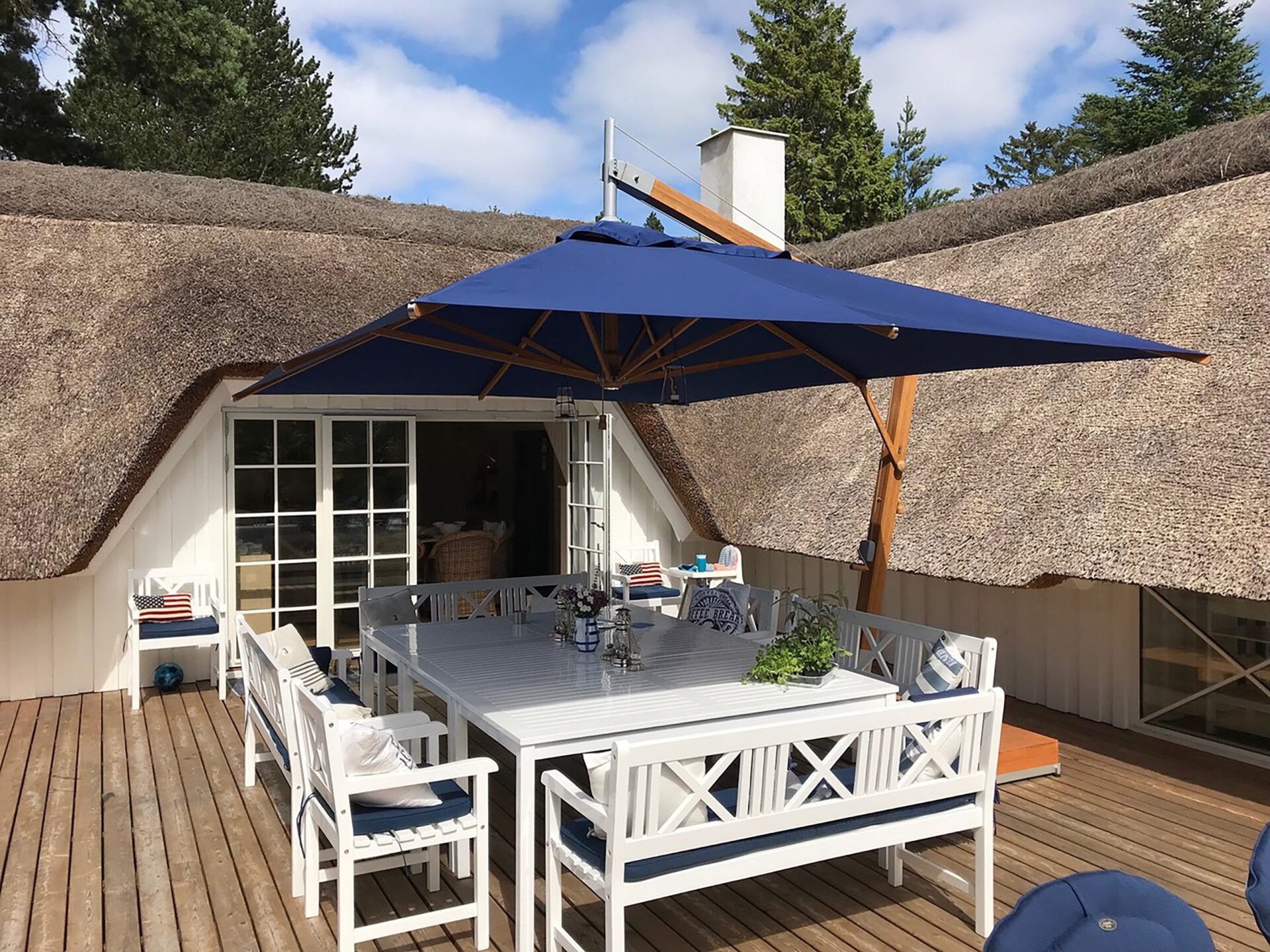

Levante Side Wind Round specifications
Diagram	Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
	3.5m Round 3.5m R-SW	3.5m 11.5′	2.8m 9’2″	2.1m 6’10”	0.89m 2’11”	8	35 x 20mm 1 3/8″ x 3/4″	2 x 70kg 2 x 154lb

Levante Side Wind Square specifications
Diagram	Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
	3.0m Square 3.0m SQ-SW	3.0 x 3.0m 10′ x 10′	3.05m 10′	2.26m 7’5″	0.80m 2’7″	8	35 x 20mm 1 3/8″ x 3/4″	2 x 70kg 2 x 154lb
	3.4m Square 3.4m SQ-SW	3.4 x 3.4m 12′ x 12′	3.37m 11′	2.42m 7’11”	0.43m 1’5″	8	35 x 20mm 1 3/8″ x 3/4″	4 x 50kg 4 x 110lb

Levante Side Wind Rectangle specifications
Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
	2.5 x 3.5m Rectangle 2.5 x 3.5mm REC-SW	2.5 x 3.5m 8’5″ x 12′	3.0m 9’5″	2.11m 6’10”	0.92m 3’0″	8	28 x 20mm 1 1/8″ x 3/4″	2 x 70kg 2 x 154lb
	3.0 x 4.0m Rectangle 3.0 x 4.0m REC-SW	3.0 x 4.0m 10′ x 13′	3.0m 9’10”	2.13m 6’11”	0.34m 1’11″	8	35 x 20mm 1 3/8″ x 3/4″	4 x 50kg 4 x 110lb

Technical Data:

Diagram	Reference	Material Frame	Opening
	1 = Total height, 2 = Open height, 3 = Closed height	The pole, ribs, hub, runner and finial are all made using laminated bamboo. All metal fittings are 304 stainless steel.	A double pulley and rope system for easy opening and closing of parasol.

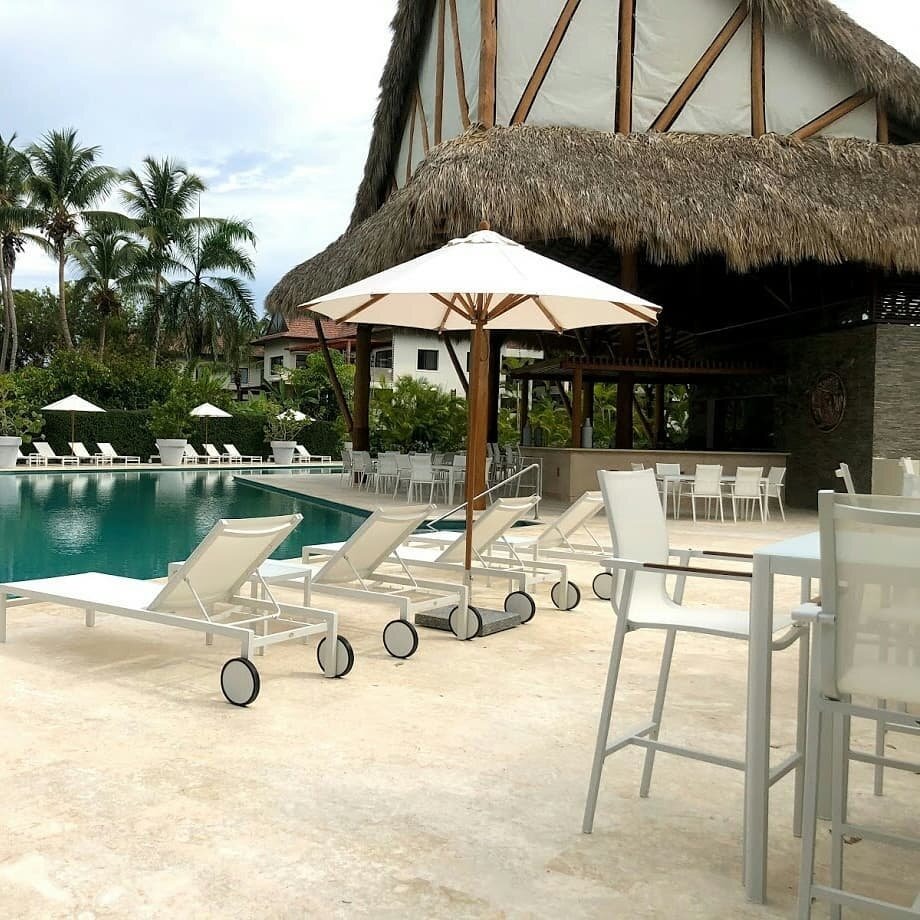

Levante Round Specifications
Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
2.5m Round 2.5m R-L	2.5m 8.5′	2.65m 8’8″	2.1m 6’10”	1.24m 4’0″	38mm 1.5″	8	28 x 20mm 1 1/8″ x 3/4
3.0m Round 3.0m R-L	3.0m 10′	2.7m 8’10”	2.1m 6’10”	1.05m 3’5″	48mm 2″	8	28 x 20mm 1 1/8″ x 3/4″
3.5m Round 3.5m R-L	3.5m 11.5′	2.8m 9’2″	2.1m 6’10”	0.89m 2’11”	48mm 2″	8	35 x 20mm 1 3/8″ x 3/4″
4.0m Round 4.0m R-L	4.0m 13′	2.8m 9’2″	2.1m 6’10”	0.83m 2’8″	58mm 2.25″	8	35 x 20mm 1 3/8″ x 3/4″

Levante Square Specifications
Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
2.1m Square 2.1m SQ-L	2.1 x 2.1m 7′ x 7′	2.75m 9′	2.13m 6’11”	1.10m 3’7″	38mm 1.5″	4	28 x 20mm 1 1/8″ x 3/4″
2.6m Square 2.6m SQ-L	2.6 x 2.6m 9′ x 9′	2.9m 9’6″	2.1m 6’10”	0.86m 2’10”	48mm 2″	8	28 x 20mm 1 1/8″ x 3/4″
3.0m Square 3.0m SQ-L	3.0 x 3.0m 10′ x 10′	3.05m 10′	2.26m 7’5″	0.80m 2’7″	48mm 2″	8	35 x 20mm 1 3/8″ x 3/4″
3.4m Square 3.4m SQ-L	3.4 x 3.4m 12′ x 12′	3.37m 11′	2.42m 7’11”	0.80m 2’7″	58mm 2.25″	8	35 x 20mm 1 3/8″ x 3/4″

Levante Rectangular Specifications
Diagram	Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
	2.0 x 3.0m Rectangle 2.0 x 3.0m REC-L	2.0 x 3.0m 7′ x 10′	2.88m 9’5″	2.1m 6’10”	0.92m 3’0″	38mm 2″	6	28 x 20mm 1 1/8″ x 3/4″
	2.5 x 3.5m Rectangle 2.5 x 3.5mm REC-L	2.5 x 3.5m 8’5″ x 12′	3.0m 9’10”	2.13m 6’11”	0.76m 2’6″	58mm 2.25″	8	35 x 20mm 1 3/8″ x 3/4″

Technical Data:

Diagram	Reference	Material Frame	Opening
	1 = Total height, 2 = Open height, 3 = Closed height	The posts and ribs are made from aluminium, hub, runner – with Aluminium and stainless steel.	A geared winch system ensuring easy opening and closing of the parasol.

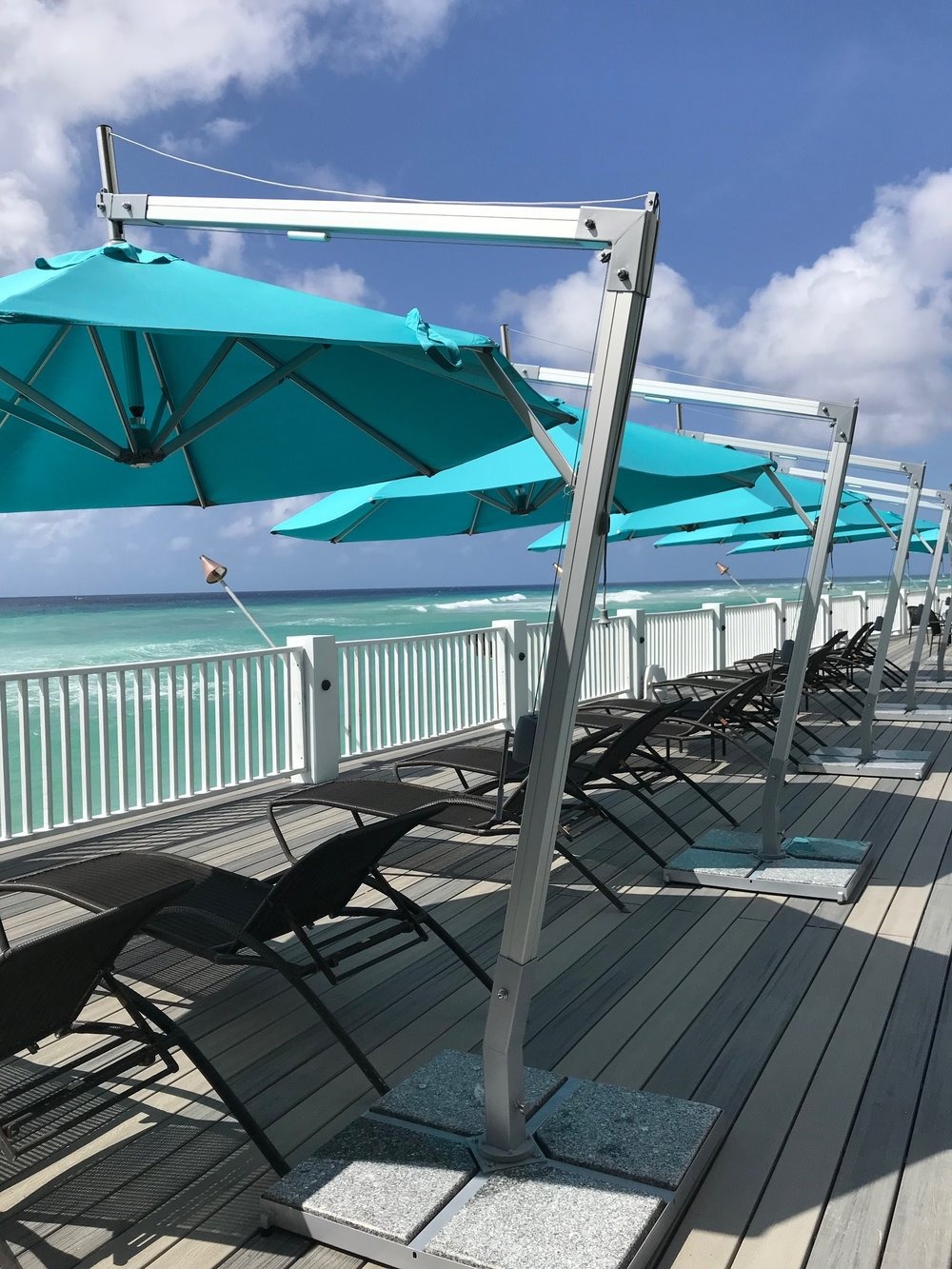

Santa Ana Side Wind Round Specifications
Diagram	Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
	3.0m Round 3.om R-SW-SA	3.0m 10′	.8m 9’2″	2.1m 6’10”	1.20m 4’0″	8	35 x 20mm 1 3/8″ x 3/4″	4 x 30kg 4 x 60lb

Santa Ana Side Wind Square Specifications
Diagram	Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
	2.6m Square 2.6m SQ-SW-SA	2.6m 9′	3.0m 9’11”	2.1m 6’10”	0.86m 2’10”	8	35 x 20mm 1 3/8″ x 3/4″	4 x 30kg 4 x 60lb

Santa Ana Side Wind In-Ground Base Specs:

Technical Data:

Diagram	Reference	Material Frame	Opening
	1 = Total height, 2 = Open height, 3 = Closed height	The posts and ribs – aluminium, hub and runner – marine grade nylon PA66.	A double pulley and rope system for easy opening and closing of parasol.

Santa Ana Parasol Round Specifications
Diagram	Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
	2.5m Round 2.5m R-SA	2.5m 8.5′	2.4m 7’10”	1.9m 6’3″	1.2m 3’9″	38mm 1.5″ or 2″	6	35 x 20mm 1″ x 3/4″
	3.0m Round 3.0m R-SA	3.0m 10′	2.54m 8’4″	1.9m 6’3″	1.0m 3’3″	38mm 1.5″ or 2″	6	35 x 20mm 1″ x 3/4″

Santa Ana Square Specifications
Diagram	Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
	2.0m SQ-SA	2.0m x 2.0m 7′ x 7′	2.53m 8’4″	2.0m 6’6″	1.0m 3’3″	38mm 1.5″ or 2″	4	25 x 20mm 1″ x 3/4″

Technical Data :

Diagram	Reference	Material Frame	Opening
	1 = Total height, 2 = Open height, 3 = Closed height	The posts and ribs – aluminium, hub and runner – marine grade nylon PA66.	A geared winch system ensuring easy opening and closing of the parasol.

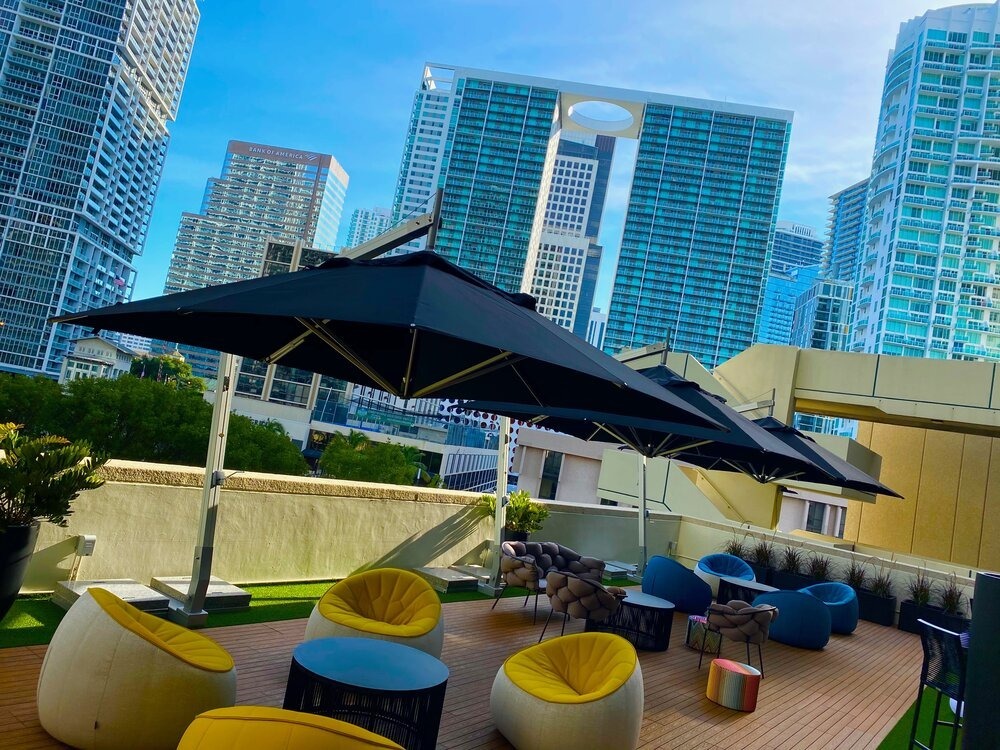

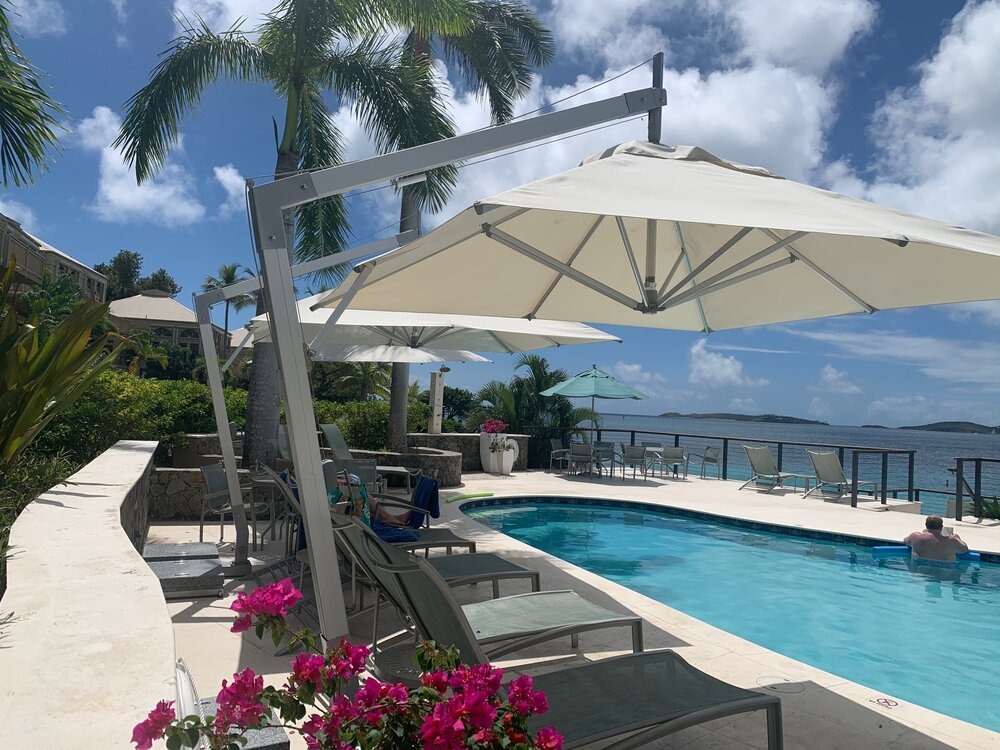

Hurricane Side Wind Round Specifications
Diagram	Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
	3.5m Round 3.5m R-SW-H	3.5m 12′	3.1m 10’2″	2.1m 6’10”	0.82m 2’8″	8	35 x 20mm 1 3/8″ x 3/4″	2 x 70kg 2 x 154lb

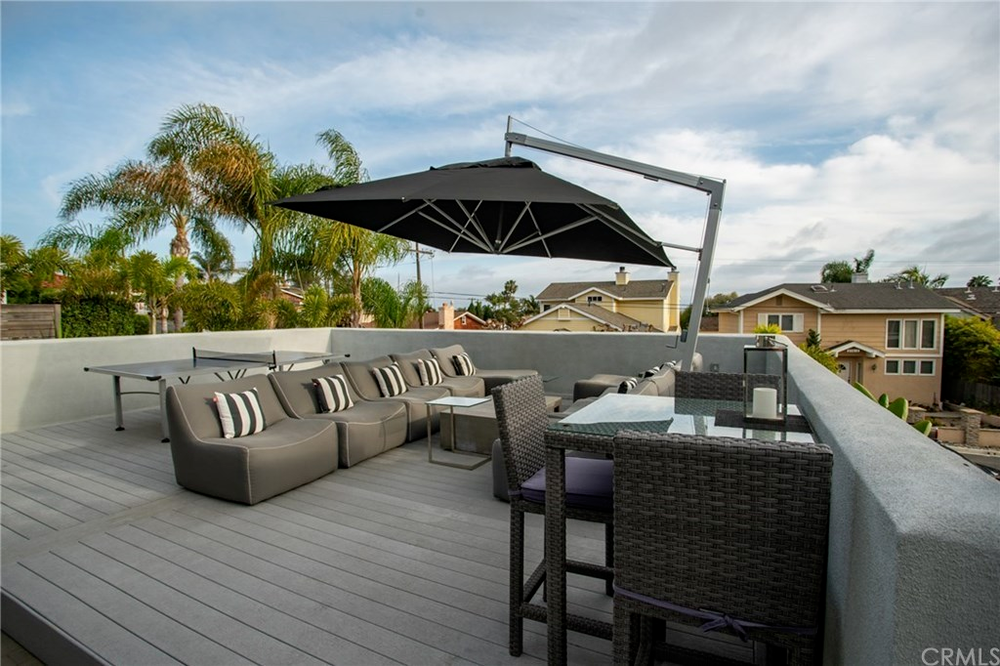

Hurricane Side Wind Square Specifications
Diagram	Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
	3.0m Square 3.0m SQ-SW-H	3.0m 10′	3.20m 10’6″	2.1m 6’10”	0.60m 1’11”	8	35 x 20mm 1 3/8″ x 3/4″	2 x 70kg 2 x 154lb
	3.4m Square 3.4m SQ-SW-H	3.4m 11’5″	3.36m 11′	2.1m 6’10”	0.43m 1’5″	8	35 x 20mm 1 3/8″ x 3/4″	2 x 70kg 2 x 154lb

Technical Data:

Diagram	Reference	Material Frame	Opening
	1 = Total height, 2 = Open height, 3 = Closed height	The posts and ribs – aluminium, hub and runner – marine grade nylon PA66.	A double pulley and rope system for easy opening and closing of parasol.

Hurricane Telescopic Round Specifications
Diagram	Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
	3.5m Square 3.5m SQ-T-H	3.5m 11.5′	3.6mm 11’8″	2.1m 6’10”	0.7m 2’29”	59mm 2’35”	6	35 x 20mm 1 3/8″ x 3/4″
	4.0m Square 4.0m SQ-T-H	4.0m 13′	3.6m 11’8″	2.1m 6’10”	0.7m 2’29”	59mm 2’35”	8	35 x 20mm 1 3/8″ x 3/4″

Technical Data:

Diagram	Reference	Material Frame	Opening
	1 = Total height, 2 = Open height, 3 = Closed height	The posts and ribs – aluminium, hub and runner – marine grade nylon PA66.	A double pulley and rope system is used for easy, light opening.

Hurricane Round specifications
Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
2.5m Round 2.5m R-H	2.5m 8.5′	2.65m 8’8″	2.1m 6’10”	1.24m 4’0″	48mm 2″	6	35 x 20mm 1 3/8″ x 3/4″
3.0m Round 3.0m R-H	3.0m 10′	2.7m 8’10”	2.1m 6’10”	1.05m 3’5″	48mm 2″	8	35 x 20mm 1 3/8″ x 3/4″
3.5m Round 3.5m R-H	3.5m 12′	2.8m 9’2″	2.1m 6’10”	0.89m 2’11”	48mm 2″	8	35 x 20mm 1 3/8″ x 3/4″
4.0m Round 4.0m R-H	4.0m 13.5′	2.8m 9’2″	2.1m 6’10”	0.83m 2’8″	58mm 2.25″	8	35 x 20mm 1 3/8″ x 3/4″

Hurricane Square Specifications
Code	Size	Total height	Open height	Closed height	Pole size	No of ribs	Size of ribs
2.0m Square 2.0m SQ-H	2.0 x 2.0m 7′ x 7′	2.75m 9′	2.13m 6’11”	1.10m 3’7″	48mm 2″	4	35 x 20mm 1 3/8″ x 3/4″
2.6m Square 2.6m SQ-H	2.6 x 2.6m 9′ x 9′	2.9m 9’6″	2.1m 6’10”	0.86m 2’10”	48mm 2″	8	35 x 20mm 1 3/8″ x 3/4″
3.0m Square 3.0m SQ-H	3.0 x 3.0m 10′ x 10′	3.05m 10′	2.261m 7’5″	0.80m 2’7″	48mm 2″	8	35 x 20mm 1 3/8″ x 3/4″
3.4m Square 3.4m SQ-H	3.4 x 3.4m 11.5′ x 11.5′	3.37m 11′	2.42m 7’11”	0.80m 2’7″	58mm 2.25″	8	35 x 20mm 1 3/8″ x 3/4″

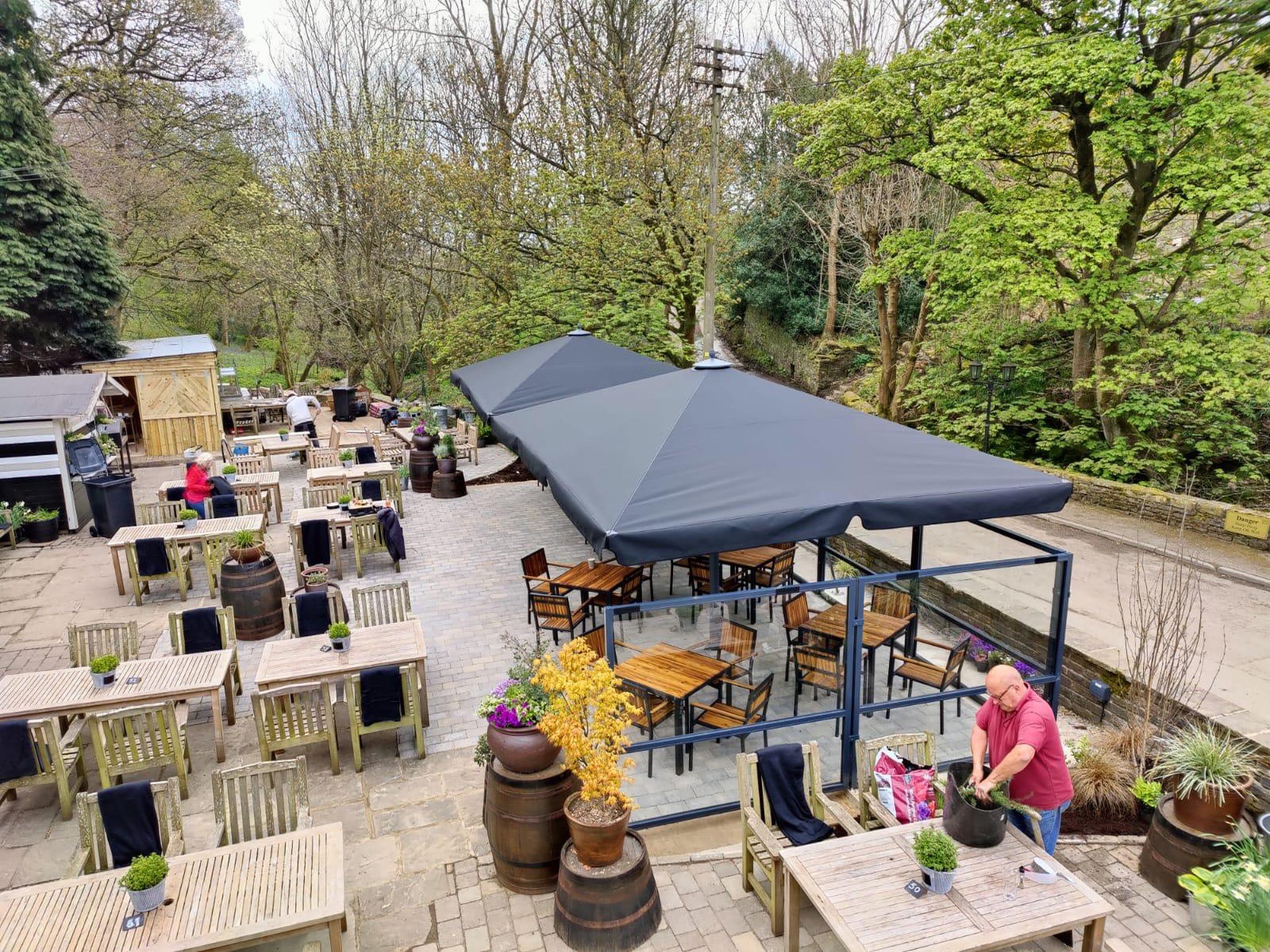

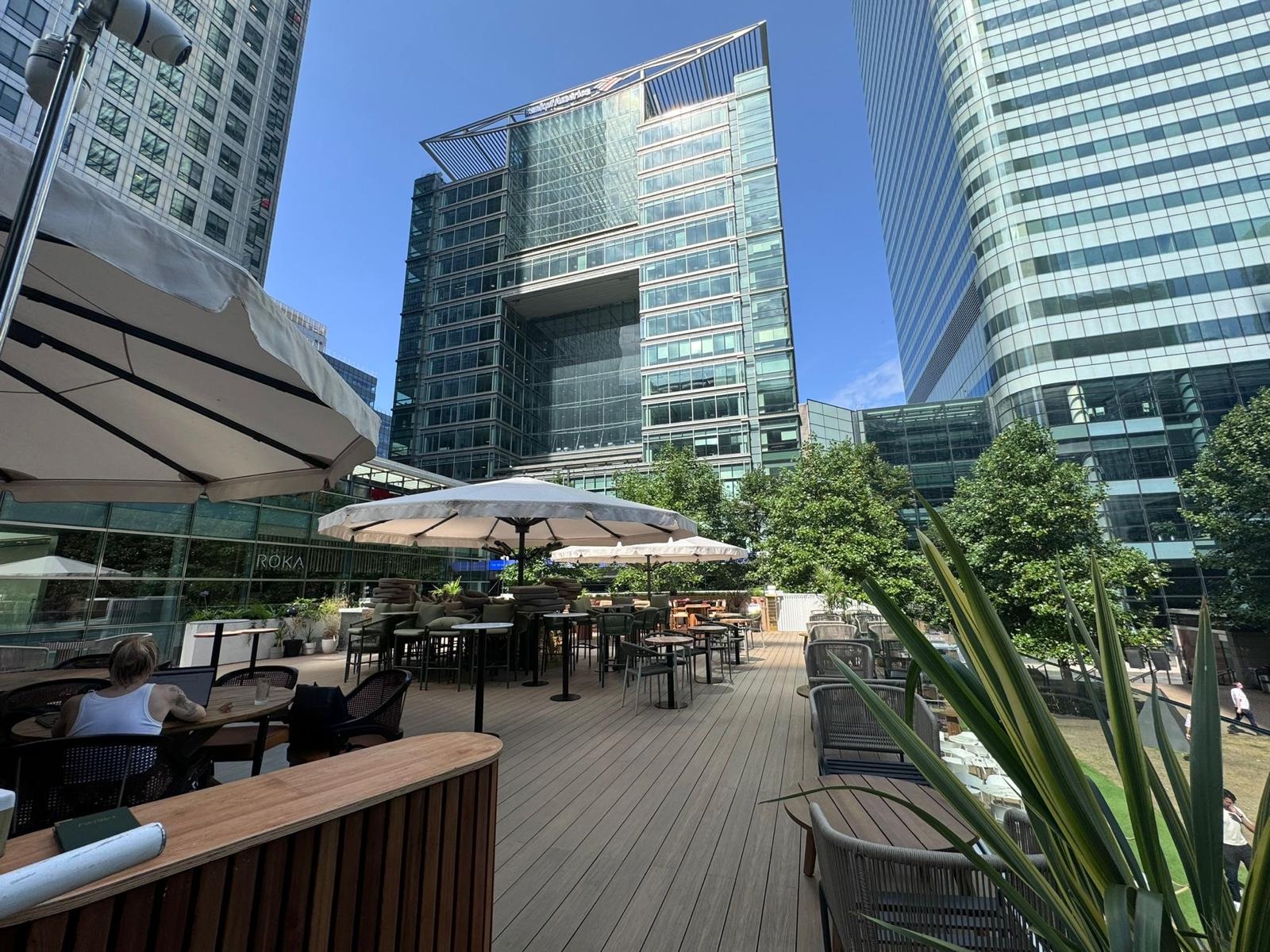

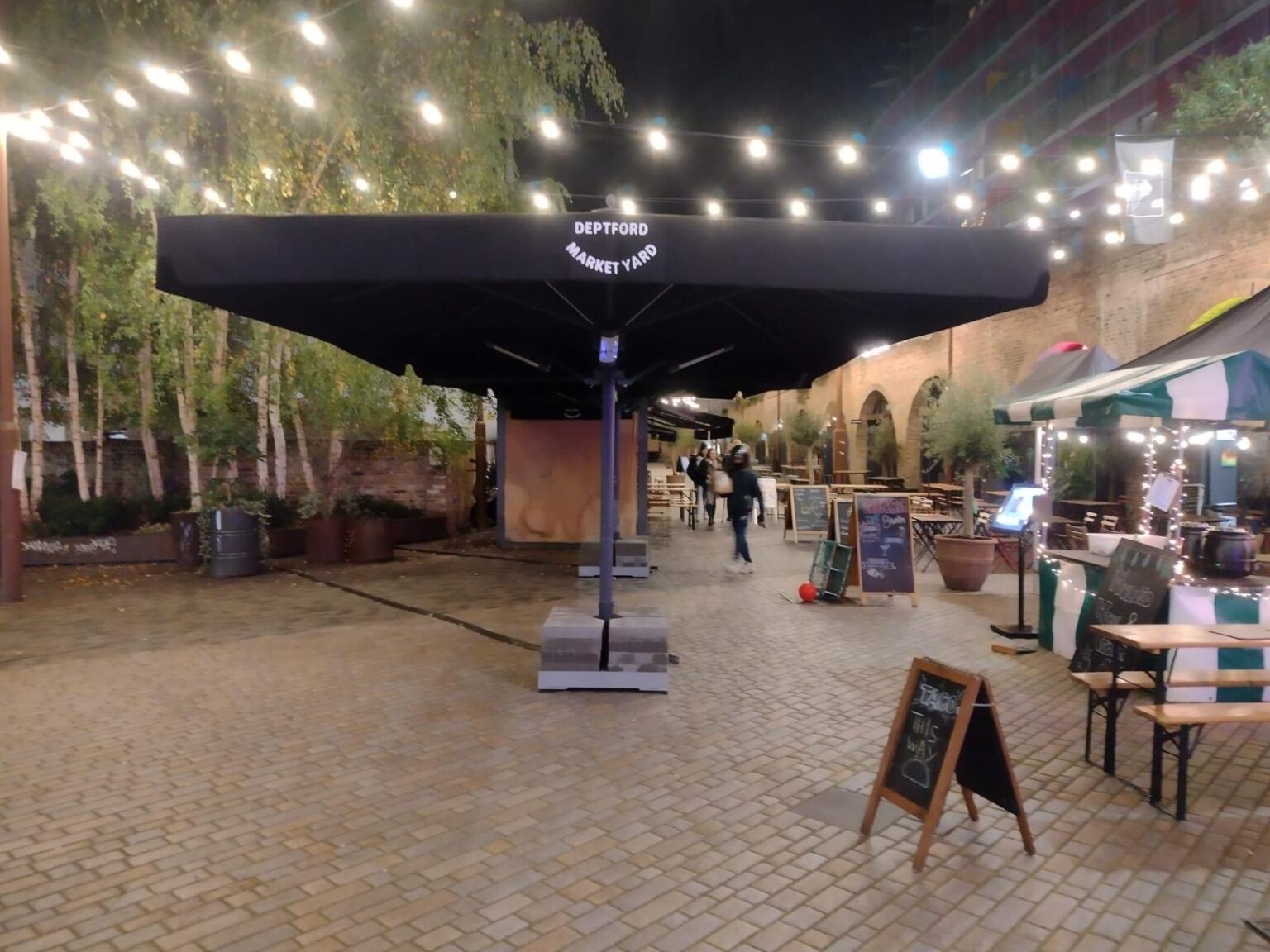

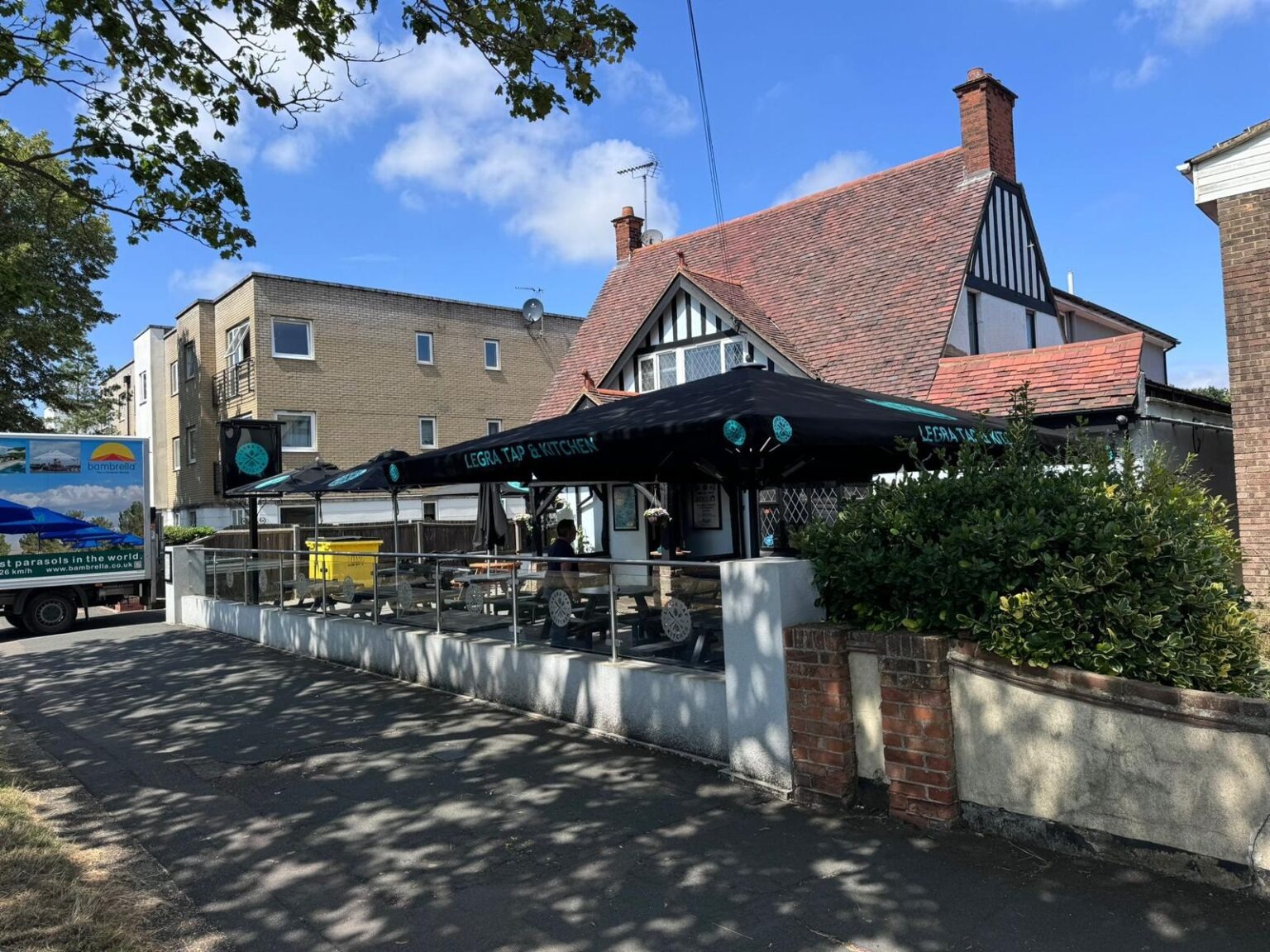

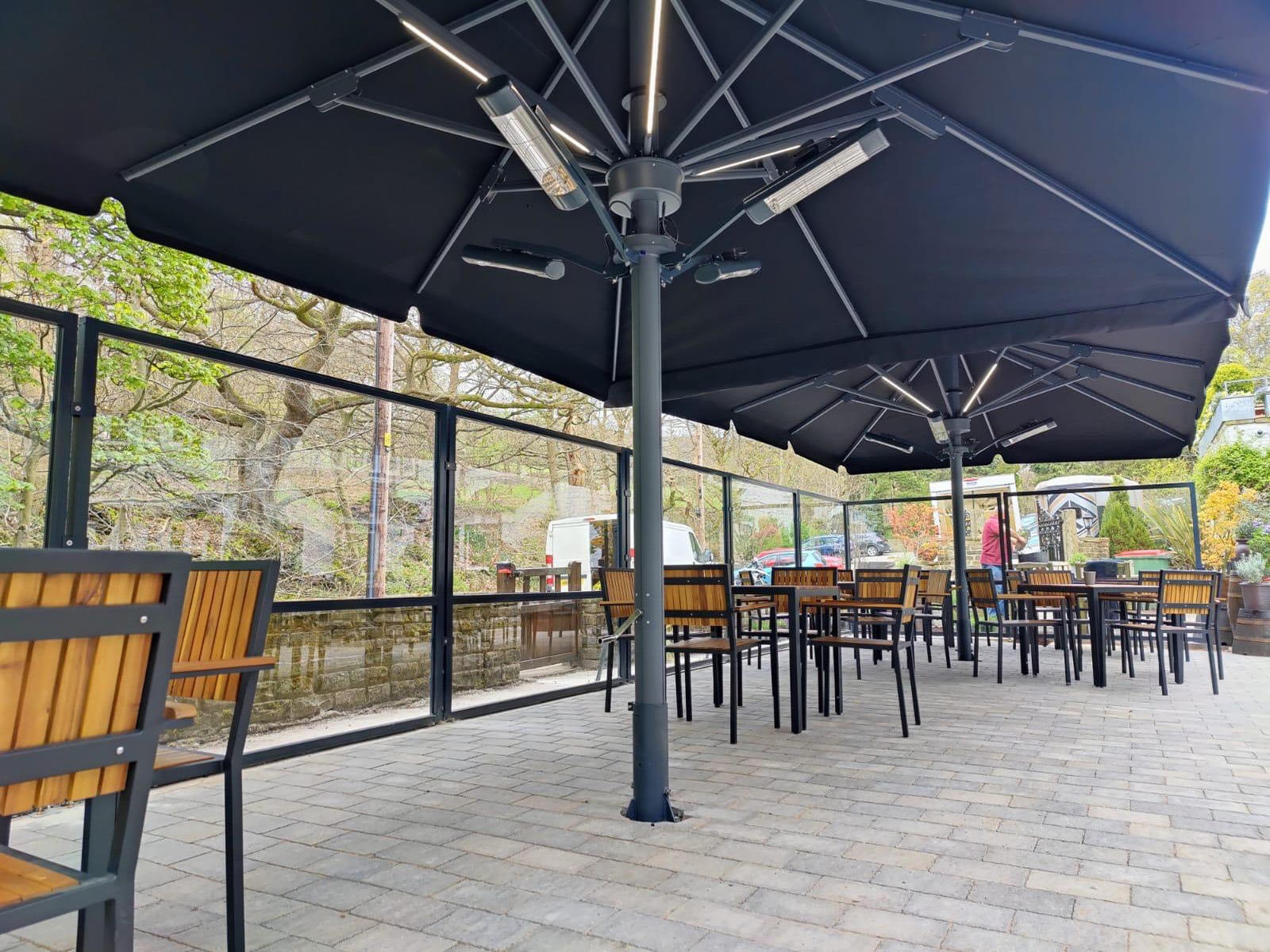

Bambrella Torr XL
